Polyurethane Sheet Liners

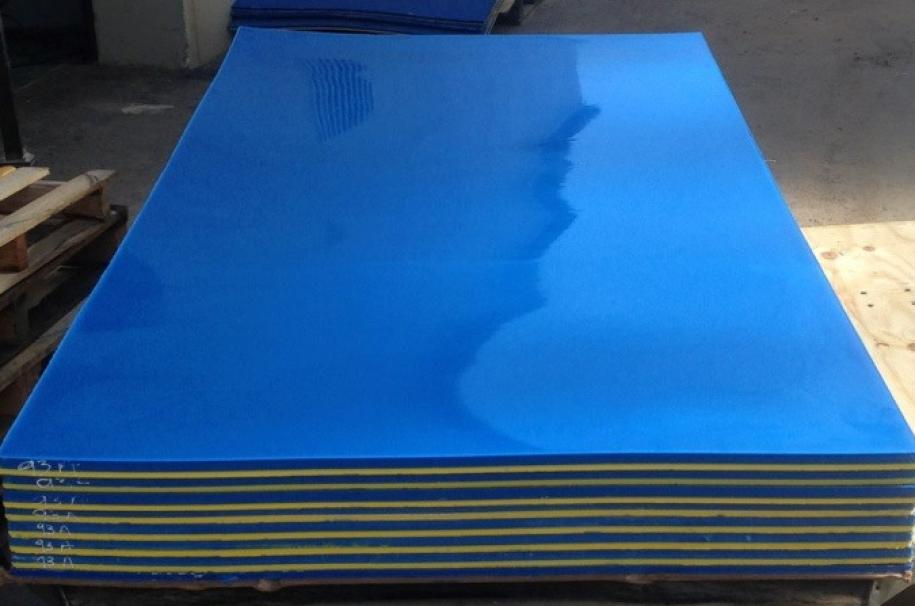

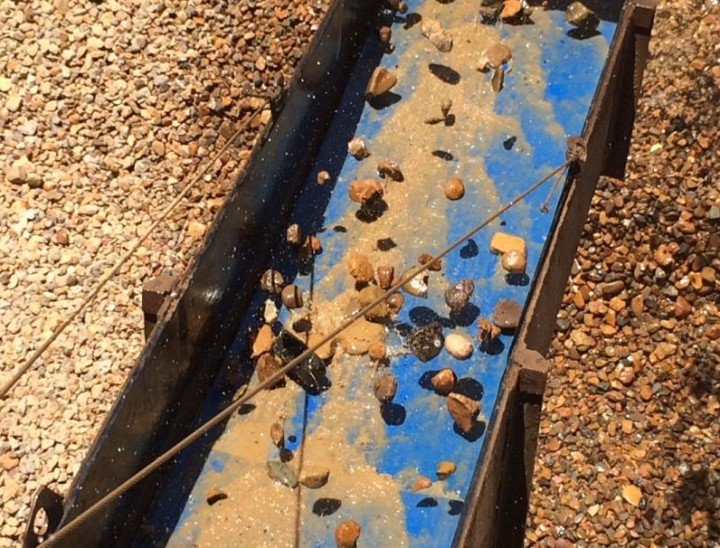

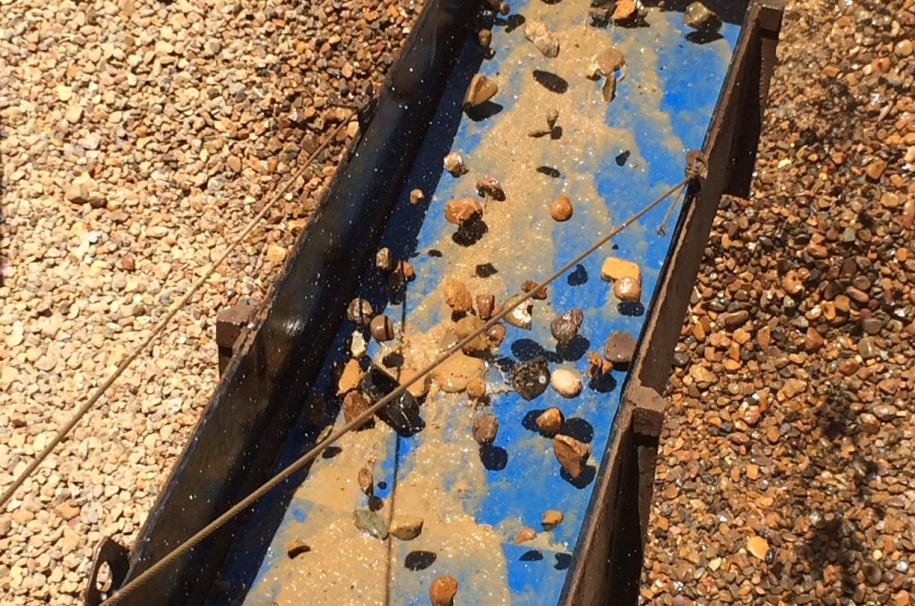

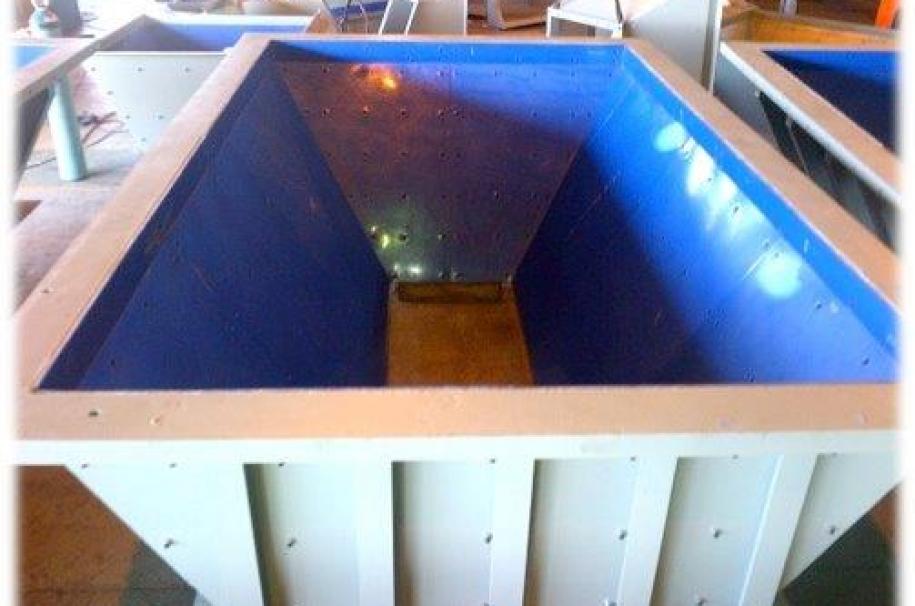

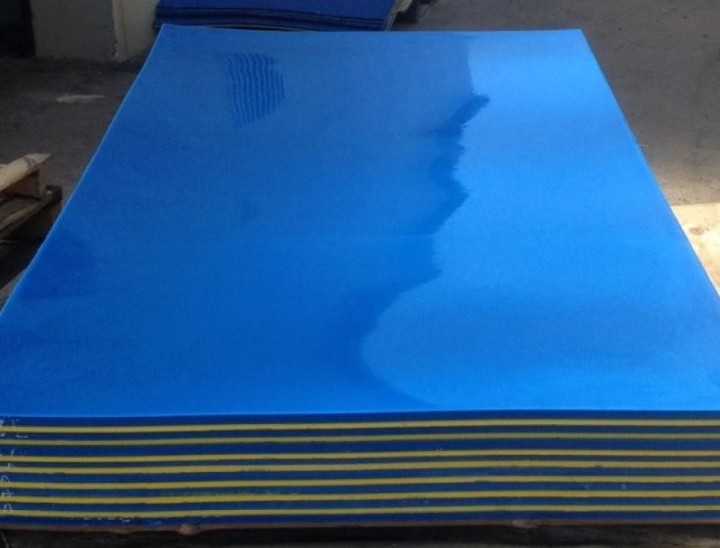

CroppedImage915606 Zanows Earthmoving AEG Poly Sheet liner

AEG poly sheet liners are high quality, resilient cast polyurethane and available in various Shore hardnesses and thicknesses.

AEG Poly Sheets provide excellent resistance to abrasive and impact wear in raw material handling.

Product Info (PDF)

Thickness (mm)	Length (mm)	Width (mm)	Hardness	Backed	Weight (kg)	AU	NZ
10	2400	1200	90 Shore	✔	46	✔	✘
16	1200	1200	85 Shore	✔	33	✔	✔
16	1200	600	85 Shore	✔	16.5	✔	✔
16	2400	1200	90 Shore	✔	66	✔	✔
20	2400	1200	85 Shore	✔	80	✔	✘
20	1200	1200	85 Shore	✔	40	✔	✔
20	1200	600	85 Shore	✔	20	✔	✔
20	2400	1200	90 Shore	✔	80	✔	✔
20	2360	1180	93 Shore	✔	80	✔	✘
25	2400	1200	85 Shore	✔	97	✔	✘
25	2400	1200	90 Shore	✔	97	✘	✔
25	2400	1200	93 Shore	✔	97	✔	✘
25	2400	1200	93 Shore	✘	86	✔	✘
30	2400	1200	85 Shore	✔	115	✔	✘
30	2400	1200	90 Shore	✔	115	✘	✔
30	2400	1200	93 Shore	✔	115	✔	✘

Other specifications available upon request
